Descripción
Marca: msi

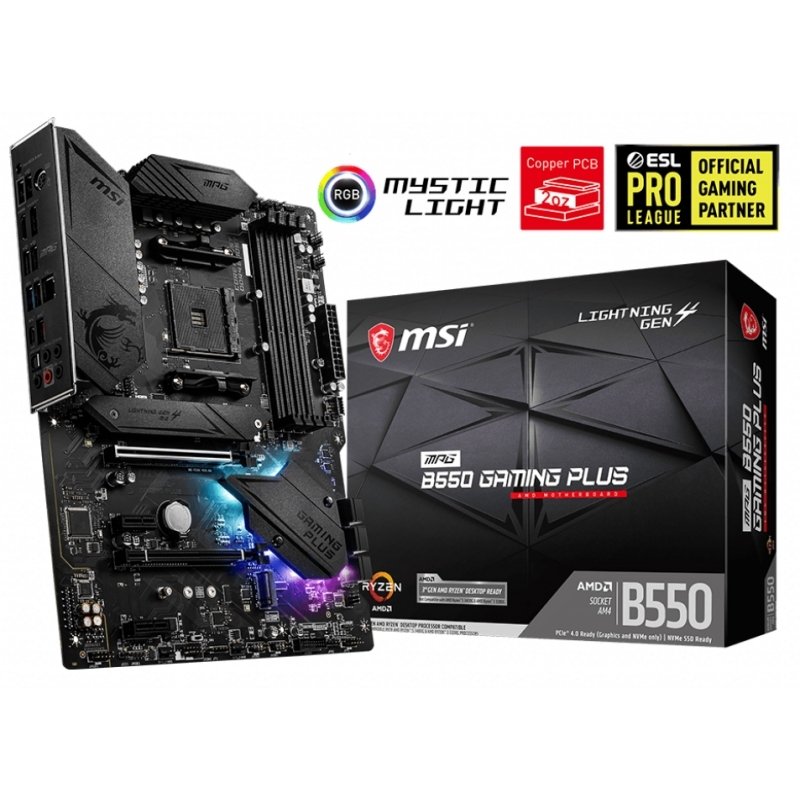

Modelo: MPG B550 GAMING PLUS(911-7C56-002)
Plataforma: – ATX (30.5 cm x 24.4 cm)
Chipset: – AMD® B550 chipset
CPU Soportados: – Soporta AMD® RYZEN™ 3ª Generación con Socket AM4
Memoria: – 4 x DDR4 memory slots, soporta hasta 128GB- Soporta DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz por JEDEC- Soporta DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400+ MHz por A-XMP OC MODE)- Dual channel memory architecture- Soporta non-ECC UDIMM memory- Soporta ECC UDIMM memory (non-ECC mode)- Soporta un-buffered memory
Slots Expansión: – 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)- 1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed- 2 x PCIe 3.0 x1 slots
Gráficos: – 1 x DisplayPort, 4096×2160 @ 60Hz- 1 x HDMI, 4096×2160 @ 24Hz- Memoria compartida máxima de 16GBMulti-GPU- Soporta 2-Way AMD CrossFire™ Technology
Puertos E/S, Conectores : Internos- 1 x 24-pin ATX main power- 1 x 8-pin ATX 12V power- 6 x SATA 6Gb/s- 2 x M.2 slots (M-Key)- 1 x USB 3.2 Gen 1 5Gbps Type-C- 1 x USB 3.2 Gen 1 5Gbps- 2 x USB 2.0- 1 x 4-pin CPU fan- 1 x 4-pin water-pump fan- 6 x 4-pin system fan- 1 x Front panel audio- 2 x System panel- 1 x Chassis Intrusion- 1 x 4-pin RGB LED- 2 x 3-pin RAINBOW LED- 1 x TPM module- 1 x Clear CMOS jumperExternos- PS/2 Combo- DisplayPort- 2.5G LAN- 1G LAN- HD Audio Connectors- Flash BIOS Button- USB 2.0- HDMI- USB 3.2 Gen 1 5Gbps (Type-A)- USB 3.2 Gen 2 10Gbps (Type-A + Type-C)- Optical S/PDIF OUT
Otras Características: Almacenamiento- 6 x SATA 6Gb/s- 2 x M.2 slots (Key M)RAID- Soporta RAID 0, RAID 1 y RAID 10 para dispositivos SATA- Soporta RAID 0 y RAID 1 para M.2 NVMe RAIDUSB- 3 x USB 3.2 Gen 1- 8 x USB 2.0- 2 x USB 3.2 Gen 2- 2 x USB 3.2 Gen 1Red- 1 x Realtek® RTL8111H Gigabit LANAudio- Realtek® ALC892 Codec- 7.1-Channel High Definition Audio- Soporta S/PDIFMontaje- 9 agujeros de montajeS.O. Compatible- Soporte para Windows® 10 64-bit
Fecha Revisión: 02-09-2020 por MSB
