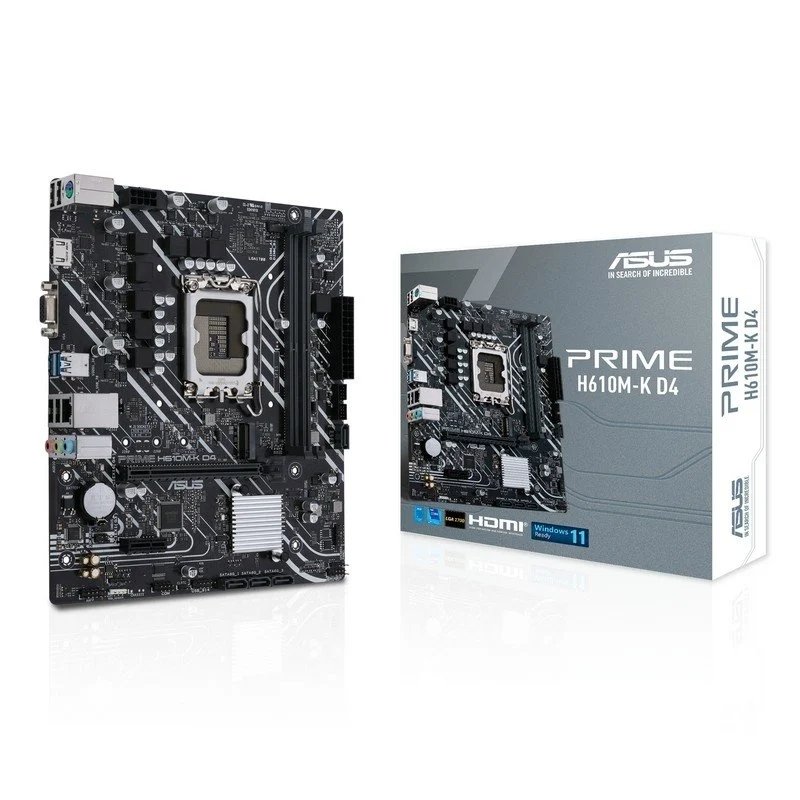

ASUS Placa Base PRIME H610M-K D4 mATX LGA1700

Descripción

Marca: Asus
Modelo: 90MB1A10-M0EAY0
Plataforma: – mATX (23.4 cm x 20.3 cm)
Chipset: – Intel® H610 Chipset
CPU Soportados: – Admite procesadores Intel® Core™, Pentium Gold y Celeron de 12ª generación – Zócalo del procesador LGA1700
Memoria: – 2 x DIMM, Max. 64GB, DDR4 DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* – Dual Channel Memory Architecture – Supports Intel® Extreme Memory Profile (XMP)
Slots Expansión: – 1 x PCIe 4.0 x16 slot – 1 x PCIe 3.0 x1 slots
Gráficos: – 1 x D-Sub – 1 x HDMI
Puertos E/S, Conectores  : Conectores Internos E/S – 1 x 4-pin CPU Fan header – 1 x 4-pin Chassis Fan header – 1 x 24-pin Main Power connector – 1 x 8-pin +12V Power connector – 1 x M.2 slot (Key M) – 4 x SATA 6Gb/s ports – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 1 x USB 2.0 header supports additional 2 USB 2.0 ports – 1 x RGB header – 1 x Clear CMOS header – 1 x COM Port header – 1 x Front Panel Audio header (AAFP) – 1 x S/PDIF Out header – 1 x Speaker header – 1 x SPI TPM header (14-1pin) – 1 x 10-1 pin System Panel header Panel E/S Trasero – 2 x USB 3.2 Gen 1 ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) – 1 x D-Sub port – 1 x HDMI® port – 1 x Realtek 1Gb Ethernet port – 3 x Audio jacks – 1 x PS/2 Keyboard/Mouse combo port
Otras Características: Almacenamiento – 1 x M.2 slots – 4 x SATA 6Gb/s Audio – Realtek 7.1 Surround Sound High Definition Audio CODEC LAN – 1 x Realtek 1Gb Ethernet USB – 2 x USB 3.2 Gen 2 (2 x Type-A) – 4 x USB 2.0 (4 x Type-A) – 1 x USB 3.2 Gen 1 header – 1 x USB 2.0 headers Sistema Operativo – Windows® 11 64-bit, Windows® 10 64-bit
Fecha Revisión: 26-01-2022 por MSB
